This Independent Motorsports fuel system relay kit is designed to power upgraded or high-flow fuel pumps on Ford Falcon BA, BF, FG, and FGX models. It delivers reliable, fused power while preventing voltage drop — a common issue in factory wiring.

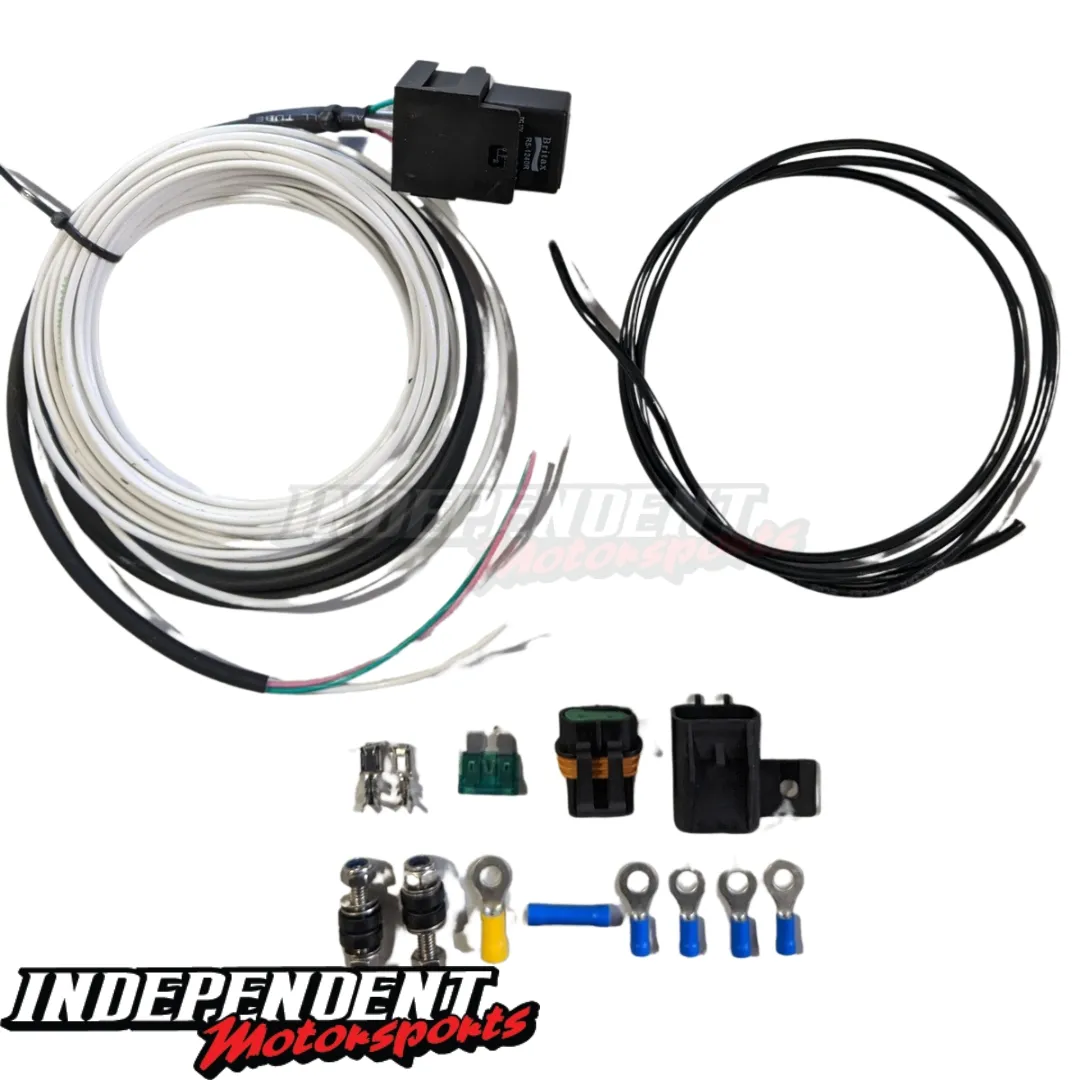

Kit Includes:

  • 1x 05589262 Blue Joiner

  • 1x 05589164 Yellow Ring

  • 4x 05589102 Blue Ring

  • 1x Relay-Single-Kit

  • 1x FSA-499 Bulkhead Terminals

  • Wiring lengths and gauge for easy installation:

    • 6.2m White Tefzel – connect to battery (via supplied fuse)

    • 5mm Black – connect to good body earth

    • 2mm Green/White – connect to good body earth

    • 5mm Black – connect to new pump negative

    • 4mm White Tefzel – connect to new pump positive

    • 2mm Pink – connect to old pump positive

Fitment:

  • Ford Falcon BA

  • Ford Falcon BF

  • Ford Falcon FG

  • Ford Falcon FGX

  • Ideal for performance pump upgrades

This kit allows for a clean and professional install using high-quality wiring, terminals, and relay components.


Key Features:

  • Suits BA, BF, FG, FGX Falcon fuel pump wiring

  • Supports high-current upgraded fuel systems

  • Relay, fuse, terminals, and wiring included

  • Colour-coded and labelled wiring for easy fitment

  • Engineered and assembled by Independent Motorsports

Wiring Diagram HERE

SKU BABF-FuelSystem-Relay-Kit
Brand Independent Motorsports
