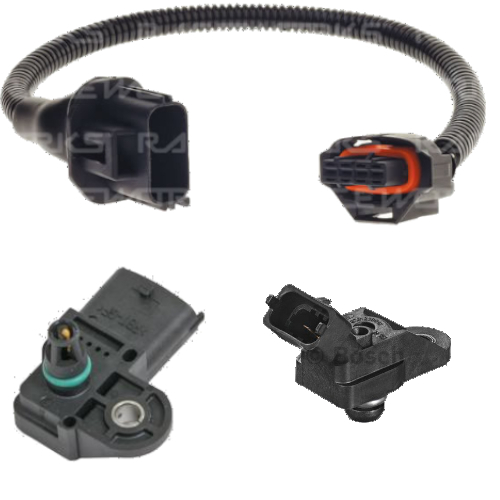

Ford FG/FGX XR6 Barra 3 bar Map Sensor kit

This kit includes everything you need to upgrade your FG/FGX to a 3 bar map sensor so that you can exceed the factory boost cut levels and give you the potential to make more power.

This kit will suit any FG/FGX Barra 4L turbo



MAP-070 Bosch PN 0 281 006 076

MAP-130 Bosch PN 0261 230 046

CPS-069

4 bar Boost sensor upgrade 0261 230 046

Application and model suitability:

- Generic use

- Custom applications

- Suitable for airbox / intake manifold...etc

- Upgrade for turbo falcons

- May require custom fittings & adaptors



3 Bar map sensor 0 281 006 076

Define your air mass with Bosch T-MAP sensors. These sensors precisely measure the absolute pressure in your intake manifold and compare it with a reference vacuum. Plus, they allow your engine management system to accurately detect inlet air temperature, as well as manifold pressure. These integrated Bosch T-MAP sensors are extremely robust and are not sensitive to oils, fuels, or fluids. Get the lowdown on your engine load and improve engine performance with T-MAP sensors from Bosch.

Map Sensor Calibration Data

11 kPa absolute - 0.25V

307 kPa absolute - 4.75V



Please note that this is not a plug and play solution your ECU will require recalibration to make this work



FG XR6T 3 Bar MAP Sensor Adapter loom  (Used when converting to a 3 bar map sensor)

Will also work on BA/BF XR6 N/A to Turbo 2.5 Bar Map sensor

Required when fitting MAP-056 3 Bar  to your FG Turbo
