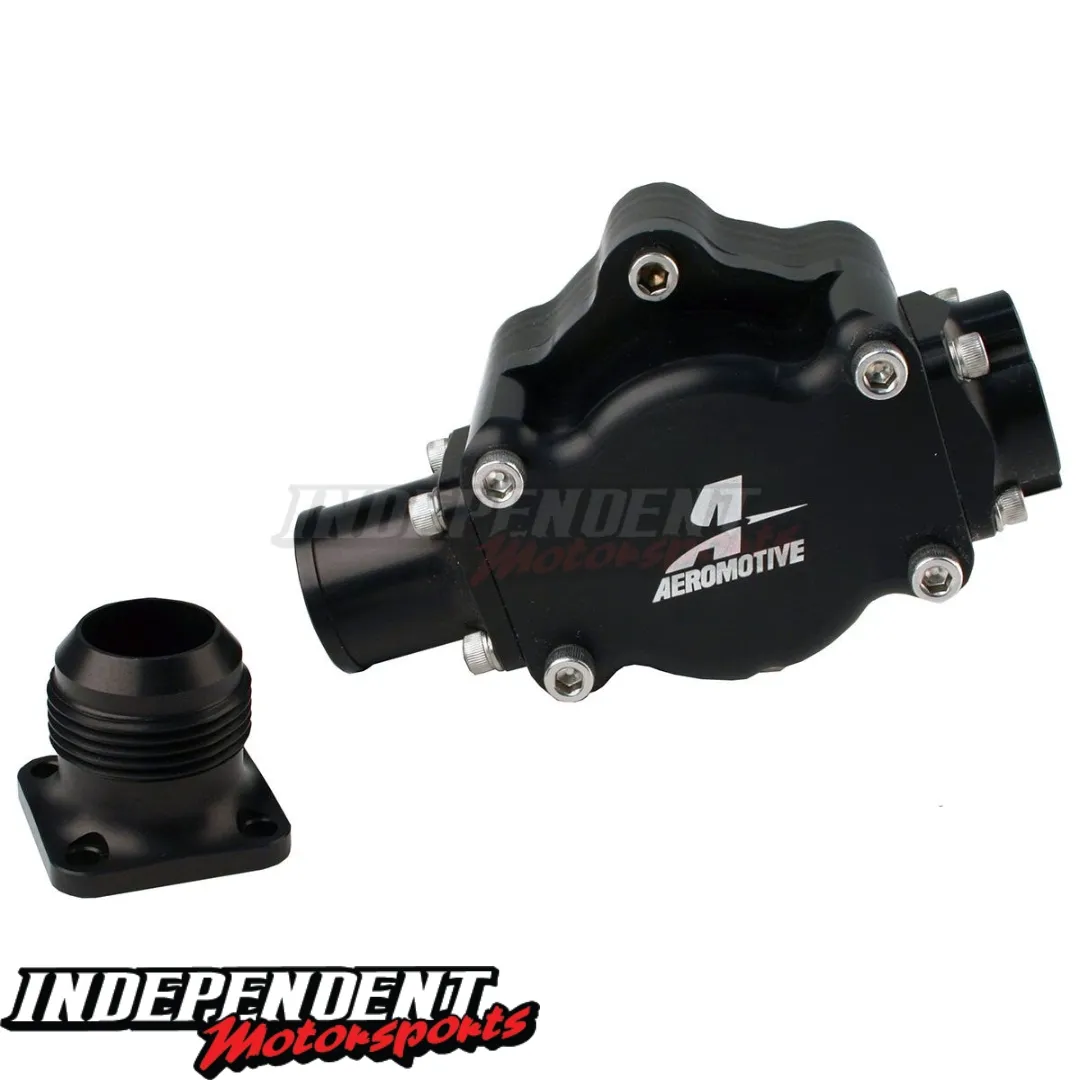

The 12 Series Belt Drive Fuel Pump is designed to feed serious EFI and carbureted engines running on gasoline, ethanol, or methanol. Driven by a pulley and cog drive belt from the crankshaft, this pump supports both high- and low-pressure applications — delivering up to 12 GPM of consistent fuel flow.

Performance Capability:

Naturally Aspirated EFI

• Up to 6,000+ FWHP on gasoline

• Up to 3,000 FWHP on methanol

Forced Induction EFI

• Up to 5,000+ FWHP on gasoline

• Up to 2,000 FWHP on methanol

Features:

• High-efficiency Gerotor pumping mechanism

• CNC machined from 6061 T6 aircraft-grade aluminum

• Type III hard coat anodized for superior durability

• Includes:

  • 1.25" barb and AN-16 male inlet fittings

  • ORB-12 female outlet port

• Compatible with high-flow return-style EFI regulators

  • Recommended regulators: P/N 13132, 13133, 13137, 13113

Optional Accessories (Sold Separately):

• Mounting Bracket: P/N 11706

• Cog Pulley: P/N 21109

• Electric Priming/Starting Kit: P/N 17301

Flow Rate:
Up to 12 gallons per minute (GPM)

Mounting:
External

Application Chart:

Additional Information:

• Designed for professional racing and high-performance use.

• Not legal for sale or use on emission-controlled vehicles except when used on dedicated race applications.

Installation instructions
