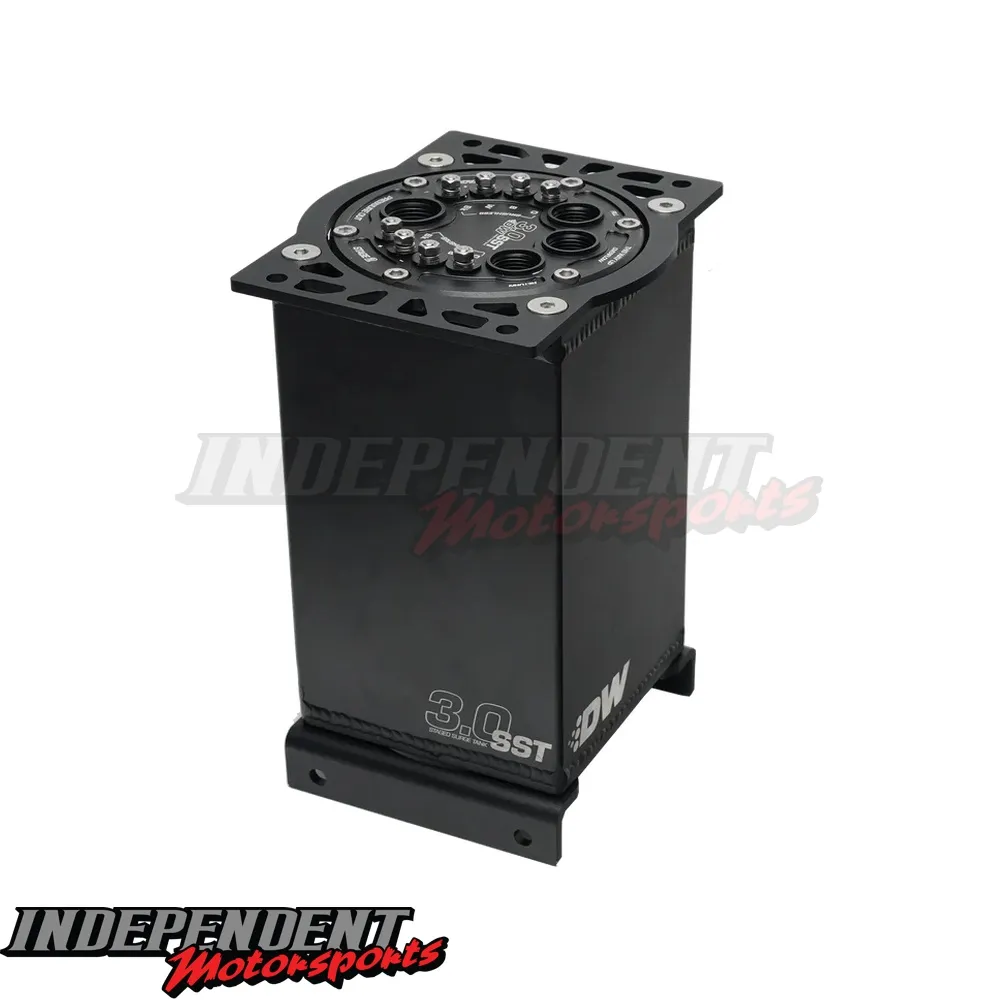

The 3L Surge Tank is engineered to provide massive amounts of fuel flow, reliably and consistently for high performance applications. The 3L Surge Tank includes the functionality of traditional surge tanks, but with increased installation flexibility through an innovative mounting and fuel line connection design.  With a merged single point outlet, single or dual, brushed or brushless pump configurations can be installed inside the tank, supporting 200hp to 2500hp

Weight (Without Pumps) 4.56 lb (2.07 kg)
Material Anodized aluminium
Design Modular, supports one or two in-tank pumps
Pump OD Fitments 39 mm or 46 mm
Connector Terminals M5 stud × 4
Pump Outlet Fitting -10 AN O-ring boss
Return / Inlet Fittings -8 AN O-ring boss × 5
Maximum Horsepower Up to 2500 HP (DW810 × 2)
Compatible Pumps DW200, DW300, DW550, DW810
Pump Supply Options Sold with no pumps or supplied with DW300, DW420, DW550, or DW810 pumps



Tech Data Sheet: 3L Surge Tank

SKU DW6-000-30ST
Brand DeatschWerks
