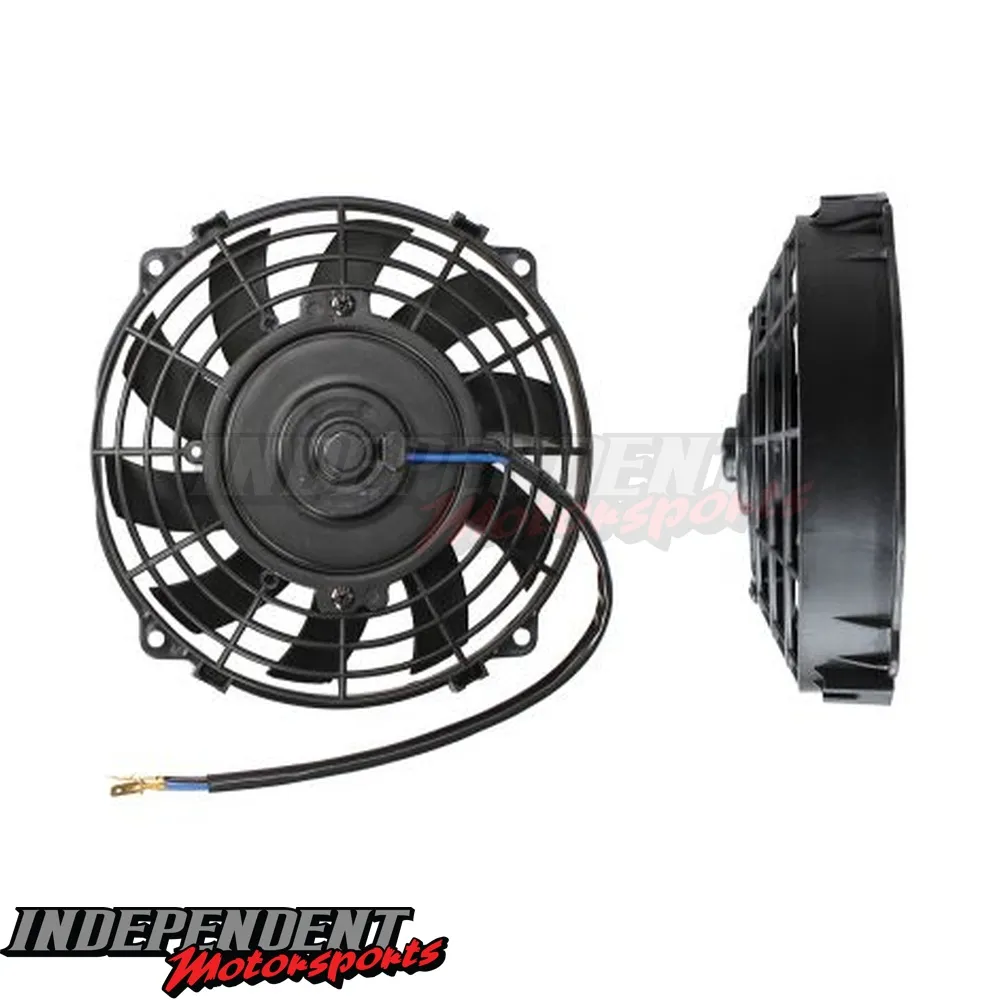

The Aeroflow performance universal electric fans are suitable for both A/C condenser, radiator cooling or can be mounted to any fluid cooler. These fans provide constant air flow, increased fuel economy, better air conditioning performance, cooler engine running, and increased engine power.

All electric fans are powered via 12 volts and can be used with any fan controller (sold separately). All electric fans are fully reversible blades and polarity for mounting either side of the heat exchanger. They are boxed in the puller configuration. To change this to a pusher fan, simply unscrew the 10mm nut (reverse, left hand thread) and turn fan blade over keeping in mind polarity BLUE for Positive and BLACK for Negative.

The electric fans are packaged with the fan assembly (motor, fan blade, shroud), fan fitting/mounting hardware is included. All wiring and controllers are sold separately.

Fan Blade Diameter: 7" (mm)
Fan Dimensions:
Fan CFM Rating: 550
Fan Style: Reversable
Voltage: 12 Volt
Amp Draw:
Weatherproof Rating: IP68
Weight:
Recommended Fuse Size: Fan Blade Diameter: 7" (178mm)
Fan Dimensions: 8-3/8" (212mm) x 8" (203mm) x 2-1/2" (64mm)
Fan CFM Rating: 550
Fan Style: Puller
Voltage: 12 Volt
Amp Draw: 10
Weatherproof Rating: IP68
Weight: 1.85kg
Recommended Fuse Size: 15 amp

This fan is configured as a puller type out of the box but can be changed to a pusher type fan if required.
