IMS Twin Bush Diff Hat Upgrade M78 BA-BF Falcon NA M78
Sick of breaking your rear diff hat, rear bolt, diff bush or all of the above???
Well we have the solution for you!

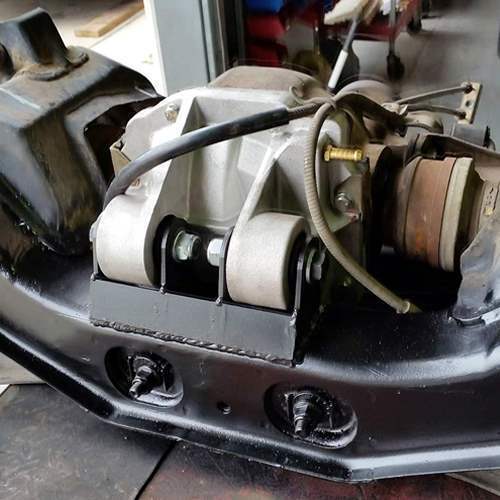

We have designed a Alloy diff hat which incorporates twin diff bushes, eliminating the existing single bush and weak aluminium hat.
This is a must have for any Territory, whether it be standard or modified.
We have two options available for purchase – Supply & Fit or DIY Kit.
The DIY Kit has been designed for easy installation, but please note you will require some basic welding skills due to the old mount needing to be removed from the cross-member & welding the supplied brackets on to the cross-member. You will also be required to remove one mount from the floor of the vehicle (which will no longer be needed). No measuring is required, as once the diff is bolted back into the cradle, it will locate itself (please see below photos). The fitment of the kit (cradle already out) should take no longer than 1 hour to complete.
IMS Alloy Diff Hat
1 x set of diff Hat Brackets
2 x M14 x 2.0 x 90 Bolt
4 x M14 Washer
2 x M14 x 2.0 Nyloc Nuts
8 x 5/16 Washers
8 x 5/16 x 1 - 1/4 Bolts
2 x Nissan P/H 55045-06J00 Bushes
1 x Brass 1/8 NPT 3/8 Barb
3 x 3/8 Npt Plugs
