The Haltech Nexus S3 Plug 'n' Play Adapter Harness (HT-186368) offers a comprehensive engine management solution for the Toyota LandCruiser 80 Series with the 1FZ-FE engine and manual transmission. This harness allows for straightforward integration with the factory wiring, enabling advanced tuning capabilities and enhanced engine performance.

Compatibility:

• For Toyota LandCruiser 80 Series with 1FZ-FE engine

• Manual transmissions only

Included in the Kit:

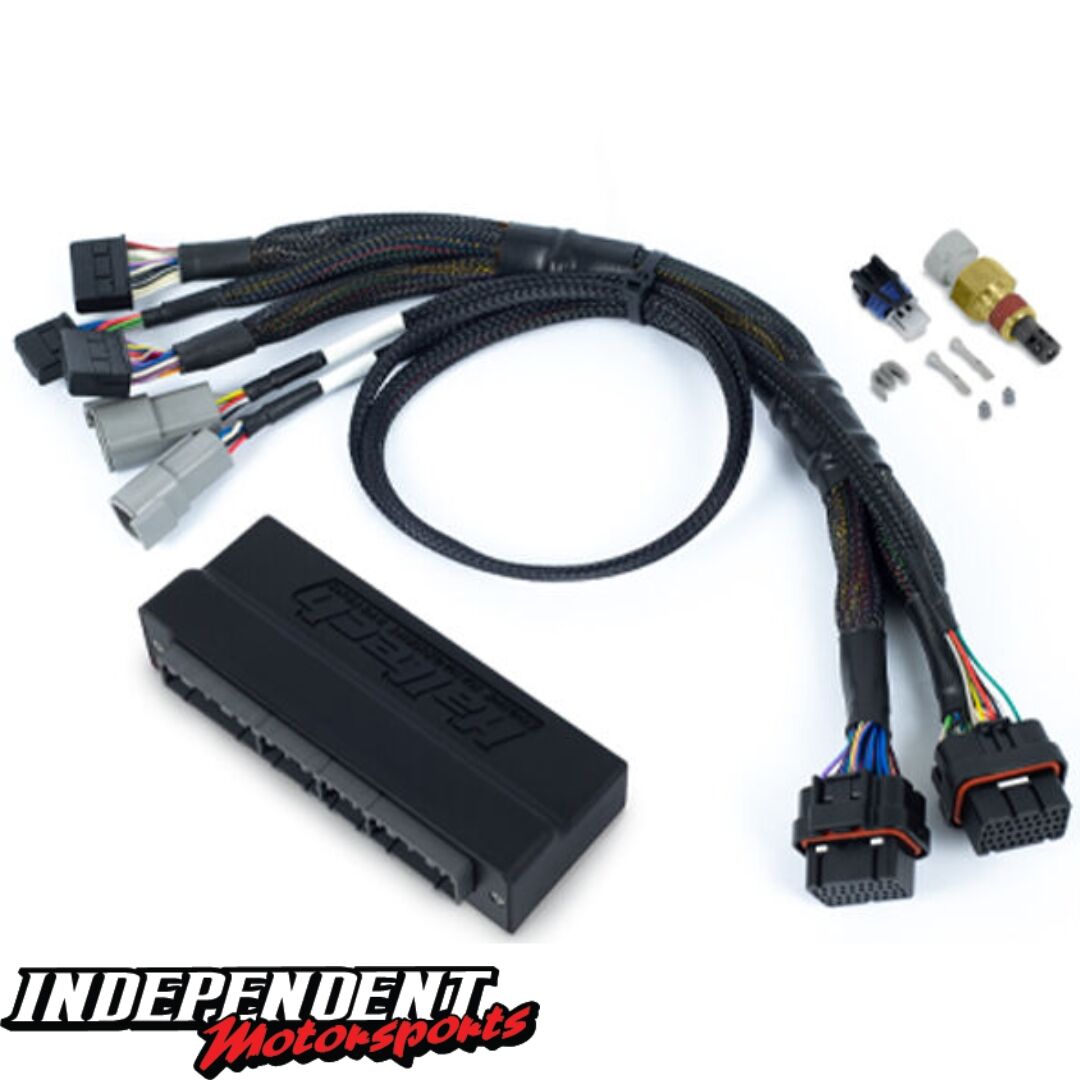

• Nexus S3 Plug 'n' Play adapter harness

• M14 x 1.5 air temperature sensor with matching plug and pins

• Auxiliary I/O 16-pin TYCO plug and pins

• Waterproof USB cap, USB programming cable, and USB software key

Important Notes:

• Spare ignition outputs can be used (via custom wiring) to convert from distributor to direct fire ignition system (6 individual coils)

• The Nexus S3 ECU does not support the factory idle speed stepper motor control. For this function, please use an Elite 2000 or 2500 ECU

Key Features:

• Advanced Engine Management: Supports Drive-By-Wire throttle control, variable cam control, and dual-channel knock control

• Flexible Tuning Options: Compatible with various fuel types, including petrol, LPG, methanol, and ethanol

• Comprehensive Data Logging: On-board data logging with up to 40 channels at sample rates up to 200Hz

• Enhanced Performance Functions: Includes features like anti-lag, launch control, traction control, and rolling anti-lag

• User-Friendly Software: Comes with the Elite Software Programmer (ESP) for intuitive engine calibration
