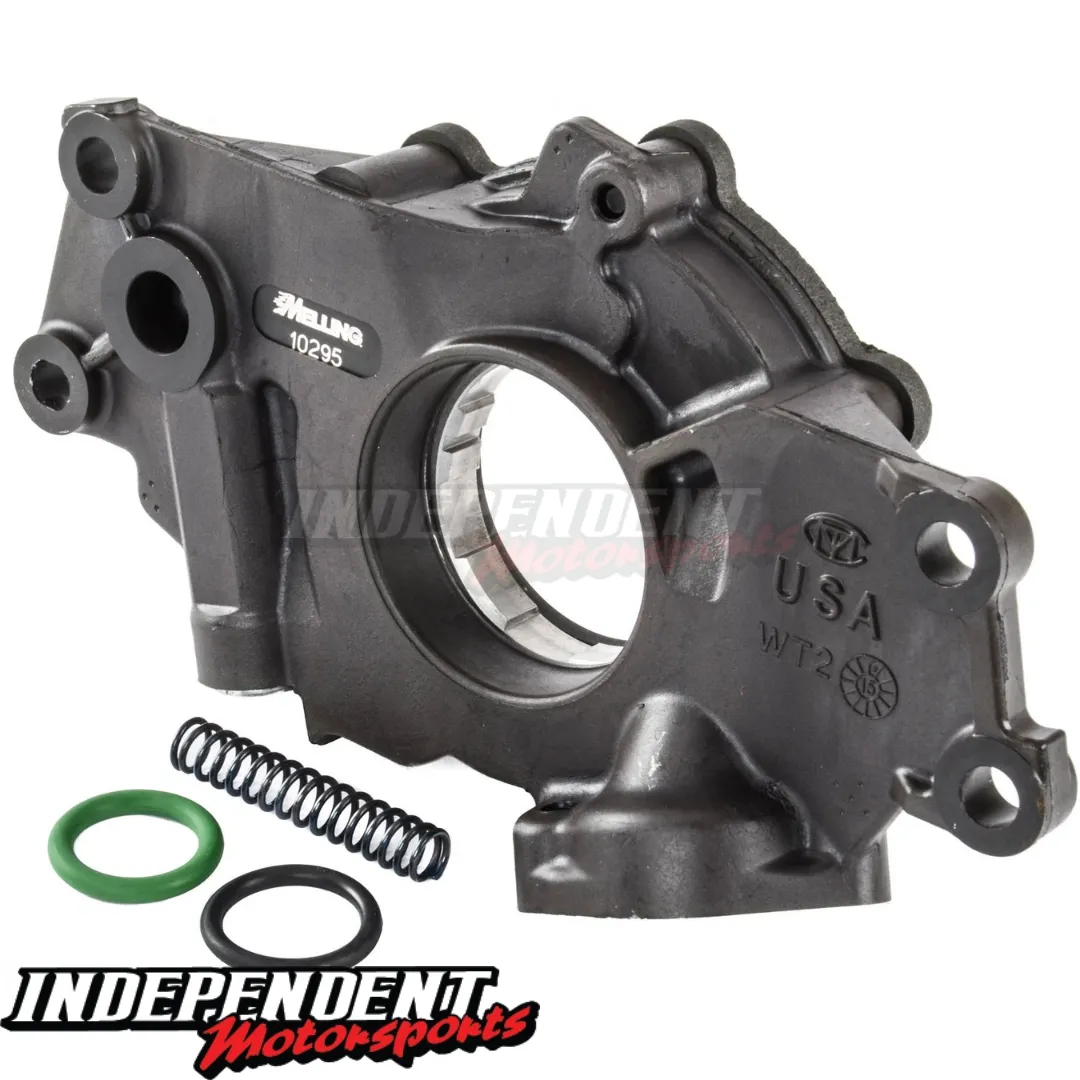

Dependable performance under the toughest RPM conditions Melling high performance oil pumps provide dependable performance every time in every application. The Melling 10295 high performance oil pump is a high pressure, standard volume upgrade of the M295. The cast aluminum housing is CNC machined and hardcoat anodized, while the cast iron cover is CNC machined and phosphate coated for improved pump performance and durability. Every Melling high performance oil pump is individually tested for pressure and flow under actual engine operating conditions.

Key Features

• High pressure performance upgrade for M295

• Stock Volume, 10 PSI increase in pressure over M295 oil pump

• Cast aluminum housing is CNC machined and hardcoat anodized

• Cast iron cover is CNC machined and phosphate coated

• The relief valve features a screw in valve plug

• Includes optional +25 psi high pressure spring for the COPO Camaro engines

• Uses 7/8" diameter standard bolt on screen

• Includes o-rings for screen assembly

Full Specs Brand: Melling Part Number: 10295 Drive Type: Crankshaft Pressure Type: High Pressure (+10 PSI over stock) Volume Type: Standard Volume Housing Material: Cast Aluminum (Anodized) Cover Material: Cast Iron (Phosphate Coated) Pickup Tube Diameter: 0.875 in (22.00 mm) Mounting Hole Diameter: 0.340 in (9.00 mm) Height: 4.450 in (116.00 mm) Width: 8.000 in (204.00 mm)

What's Included 1 x Melling 10295 Oil Pump 1 x Optional Lower Stock Pressure Spring 1 x Optional +25 PSI High Pressure Spring (COPO Camaro) 1 x Screen Assembly O-Ring Kit

Notes Made in USA. Ensure correct pickup tube O-ring selection during installation. This pump is Application Specific for GM LS engines.
