• Status: Early access, shipping now.
  • Overview: This unit pairs with the Nexus series 6Lx0 transmission harness (HT-187007) to let your Nexus ECU or VCU take full control of a supported GM 6L series auto transmission.
  • Fitment: Straight plug-and-play with a Rebel LS ECU and terminated harness via the transmission breakout connector.

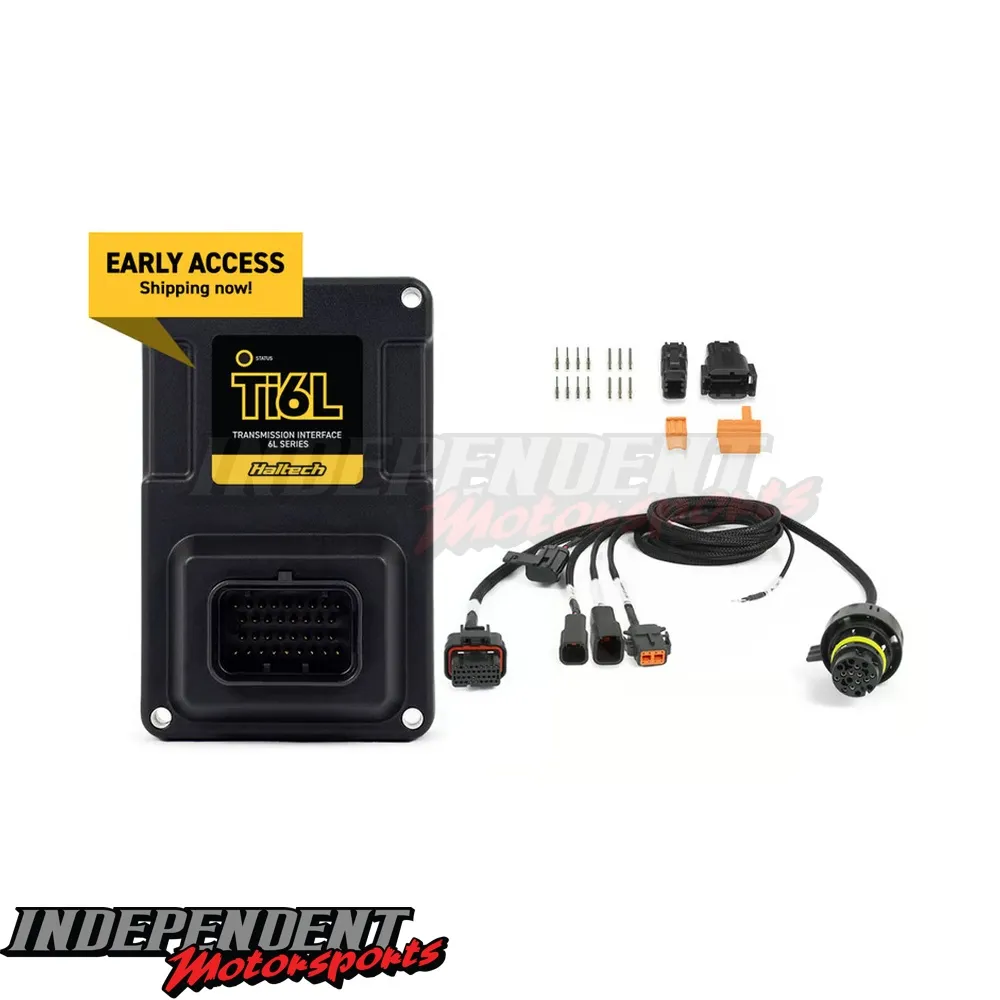

  • In the Box:
    • Nexus Ti6L Module (HT-196002).
    • Nexus Series 6Lx0 Transmission Harness (HT-187007).
    • Mounting hardware kit.
    • Opposing connectors.
    • Quick Start Guide.
  • Features & Specs:
    • Fully terminated transmission harness strictly for GM 6Lx0 boxes.
    • Dead simple Rebel LS setup wizard via Haltech NSP Software or Haltech Connect App.
    • TCM OS update support built-in.
    • Hardware: 34-pin AMP Superseal Keyway Type 2.
    • Comms: CAN 1 (Haltech Protocol) and CAN 2 (6L TCM Protocol).
    • Operating voltage: 8-22V.
    • Built tough with an IP66 rating and a 105°C (221°F) max ambient temp limit.
  • TCM Compatibility Notice:
    • Haltech has sorted most known TCM operating systems, but stray outliers exist in the wild.
    • If you catch an unsupported OS, you will need a third-party tool to extract the binary. Have one handy before purchasing to avoid stalling the job.
    • Flick the extracted binary to support@haltech.com (Subject: Ti6L Support) or ring their tech team direct.
    • Haltech generally patches support for new binaries within 2 business days.
SKU HT-196002
Brand Haltech
