DC Motor Driver - DCMD

SIZE: 86mm x 55.5mm

OUTPUTS: 2

SUITS: Turbosmart Electronic Wastegates Varex Motors DC Motors

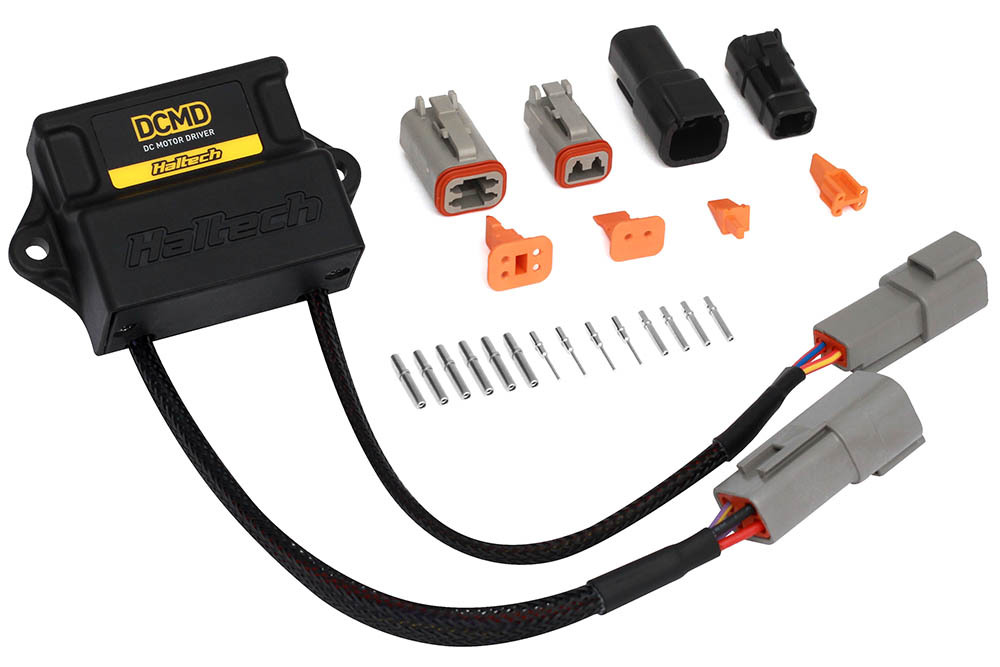

INCLUDES: 1 x DC Motor Driver - DCMD 1 x DT02-2S with Pins and Wedge 1 x DT06-4S with Pins and Wedge 1 x DTM06-4S - with Pins and Wedge 1 x DTM04-4P- with Pins and Wedge 1 x Quick Start Guide

NOTES: Works with Nexus Series, Elite Series and Platinum Series ECU's Requires 2 x DPO outputs from ECU to control ( Active State = Low)







Compatible with all Elite and NEXUS series devices, this 8A full-bridge DC Motor Driver will work in applications where the current requirements are higher than the Haltech Elite ECU’s stepper (1A) or DBW (3A) outputs can provide.

This driver can also be used with NEXUS devices where no HBO (8A) or HCO (25A) pins are available. The DCMD is rated for 8A continuous per channel, with a maximum current of 30A. Both channels can be controlled independently, ie “Control A” switches “Motor/Output A”.

With a maximum recommended switching speed of 2.2kHz, this driver box is perfect for connecting devices like the Turbosmart EWG to your Elite or NEXUS device.

NOTE: Native Turbosmart Electric Wastegate control is limited to Elite and NEXUS series devices and is not supported on Platinum series ECUs.
