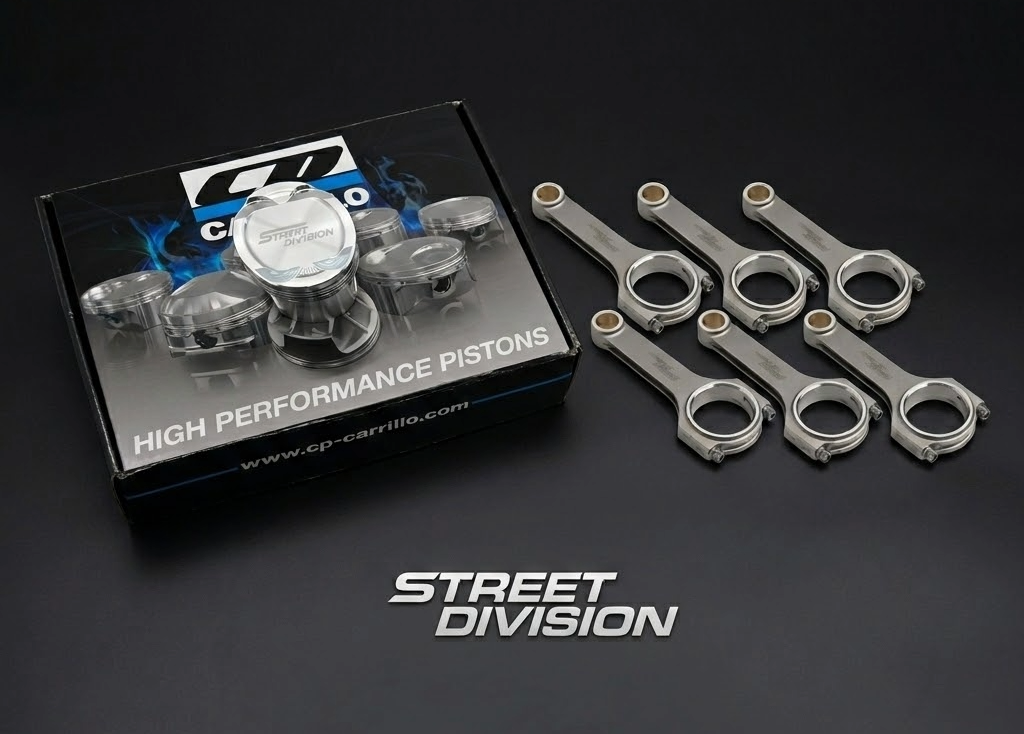

BARRA NITTO H-BEAM CONNECTING ROD AND PISTON COMBO

We have Paired these up in a listing to make it simple for you

ROD Part number: SD-ROD-BARRAH

Length: 153.86mm

Rod bolt: 3/8 ARP 2000

• Grade Tested (X-Ray & Sonic) 4340 Billet Steel ONE Piece Forging
• Quenched and Heat Treated
• Shot Peen Hardness Treated
• Doweled Cap for Superior Alignment
• Quality ARP 2000 Series Bolts
• Optional ARP Custom Age 625 Plus Series Bolts
• Silicone Bronze Pin End Bushes
• Balanced to Within a +/- 1 Gram Tolerance Per Set
• Bore Diameters to Within +/- 0.0001" Tolerance
• Sunnen Honing Machines Along with Sunnen Diamond Honing Tooling are used for both Big & Pin End Machining and Sizing
• 100% CNC Profiled
• 100% CNC Drilled & Tapped

PISTON part number: SD-CPBLT-BARRA10

CP - Carrillo part number: BF7000-010

• 92.5mm/+0.010"
• Compression Ratio: 9:1
• Gas Nitride rings
• 22mm pin
• Machined for oversized valves
• Offset pins

• Pistons manufactured from 2618 alloy for strength and durability
• Balanced to + or – 1 gram
• Dual forced pin oilers
• Contact reduction grooves
• Accumulator Grooves
• High grade Gas Nitride rings
• Forged side relief
• Chromoly wrist pins with wire locks
• FEA designed forging
• Tight tolerances
• USA made
