Sold Per Metre

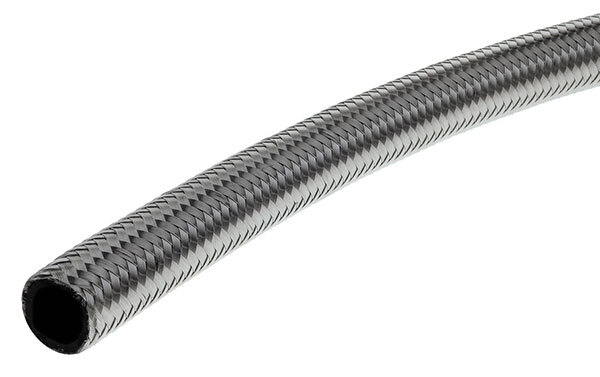

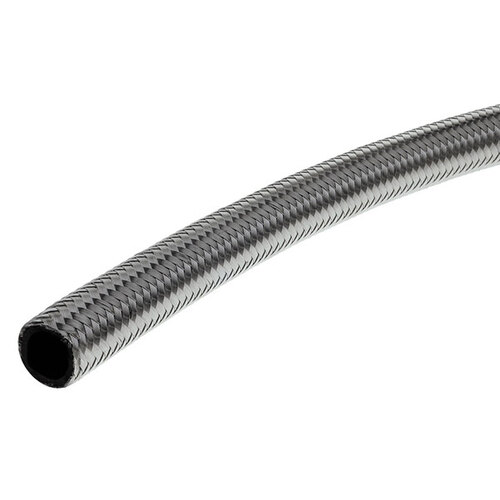

100 series stainless steel braided hose

Raceworks 100 Series Stainless Steel Braided Hose is resistant to high pressure, temperature, abrasion and corrosion. The internal hose is a reinforced Chlorinated Polyethylene (CPE) synthetic rubber with a stainless steel double outer braid. Suitable for use with regular fuel, E85, E10, methanol, oils, synthetic lubricants and coolant. All Raceworks products come with a 2 year warranty.

Temperature Range: -40°C to 150°C. Ethanol & Methanol Safe


Size Operating   Pressure Burst Pressure   Inside dia   Inch   Inside dia mm   Outside dia Inch Outside dia mm Weight (gm/m) Bend Radius (Inch) Bend Radius (mm)
AN-4   1000psi   6000psi    7/32”   5.5mm   7/16″   11.1mm   151g   1.00″   25mm
AN-6   1000psi   6000psi   11/32”    8.7mm   9/16″   13.8mm   196g   1.30″   33mm
AN-8   1000psi   5000psi   7/16”   11.1mm   5/8”   15.7mm   253g   1.69″   43mm
AN-10   1000psi   5000psi   9/16”   14.2mm   13/16″   20.8mm   365g   2.09″   53mm
AN-12   1000psi   3750psi   11/16”   17.4mm   15/16″   23.9mm   471g   2.36″   60mm
SKU rwh-100
Brand Raceworks
